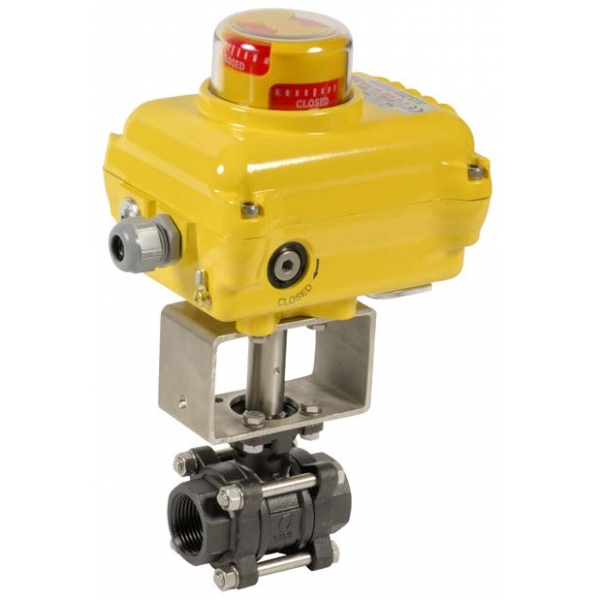

737-747+SA - Robinet sfera 3 piese PN63 cu actionare electrica SA

Modele disponibile robineti:

• 737 XS - Material corp otel 1.0619, conexiune filet interior G
• 738 XS - Material corp otel 1.0619, conexiune capete sudura
• 739 XS - Material corp otel 1.0619, conexiune mufe sudura
• 747 XS - Material corp inox 1.4408, conexiune filet interior G
• 748 XS - Material corp inox 1.4408, conexiune capete sudura
• 749 XS - Material corp inox 1.4408, conexiune mufe sudura

Caracteristici tehnice robinet:

• Trecere totala
• Material corp: otel ASTM A216 WCB
• Material corp: inox ASTM A351 CF8M
• Etansare: PTFE + 50% inox
• Temperatura: -20°C ..... + 220°C
• Presiunea maxima: 63 bar pana la 2", 40 bar peste
• Presiunea maxima abur: 18 bar
• Vacuum 10-² torr
• Conexiune filet interior BSP / mufe sudura / capete sudura
• Tija anti blow-out

Modele de actionari electrice:

• SA03 - Actionare electrica 30Nm, 12/9/7 secunde timp operare, F03/F05, 230V AC/24V AC/DC, patrat 11mm
• SA05 - Actionare electrica 50Nm, 17/10/11 secunde timp operare, F03/F05/F07, 230V AC/24V AC/DC, 12V DC, patrat 14mm
• SA05-S - Actionare electrica inchidere lenta, 50Nm, 100 secunde timp operare, F03/F05/F07, 230V AC/24V AC/DC, patrat 14mm
• SA05-X - Actionare electrica ATEX, 50Nm, 17 secunde timp operare, F03/F05/F07, 230V AC/24V AC/DC, patrat 14mm, anti-Ex II 2G Ex d IIB T4, zonele 1 & 2
• SA05-PCU - Actionare electrica reglaj, 50Nm, 17 secunde timp operare, F03/F05/F07, 230V AC/24V AC/DC, patrat 14mm, inclusiv card control 4-20 mA, 0-10 V, 2-10 V si potentiometru 4-20 mA
• SA05-SCP - Actionare electrica de siguranta, 50Nm, 8 secunde timp operare, F03/F05/F07, 230V AC/24V DC, patrat 14mm, inclusiv baterie pentru revenire la pozitia initiala in caz de lipsa tensiune
• SR03 - Actionare electrica revenire cu arc, 30Nm, 10-35 secunde timp operare, F03/F05, 230V AC/24V DC, patrat 12mm

Caracteristici tehnice actionare electrica:

• Unghi de operare 90°
• Tensiune alimentare: 230V AC sau 24V AC/DC
• ISO5211: F03/F05/F07
• Prindere ISO 5211 pad
• Carcasa aluminiu
• Temperatura ambientala: -10°C/+60°C
• S2-15 min / S4: 50% din timp
• 2 limit switch ajustabile
• 2 limit switch auxilare
• Protectie termica
• Indicator pozitie cu led
• Protectie IP67
• Actionare manuala cu imbus
